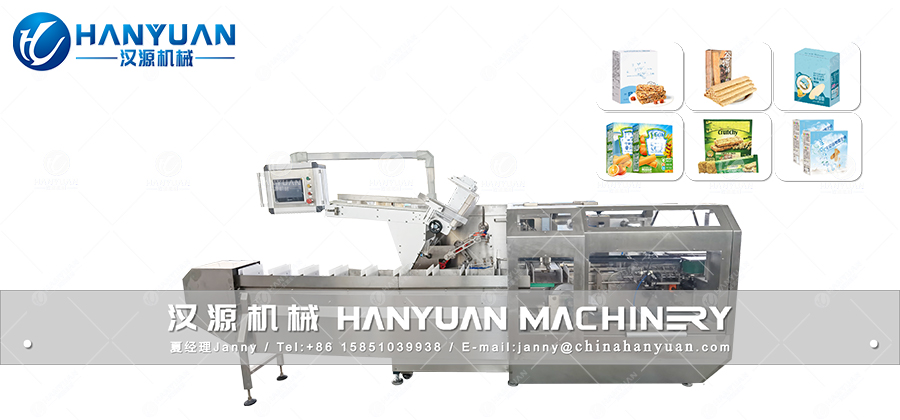

Automatic Box Packing Machine

Automatic Box Packing Machine suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect. Automatic Box Packing Machine can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons.

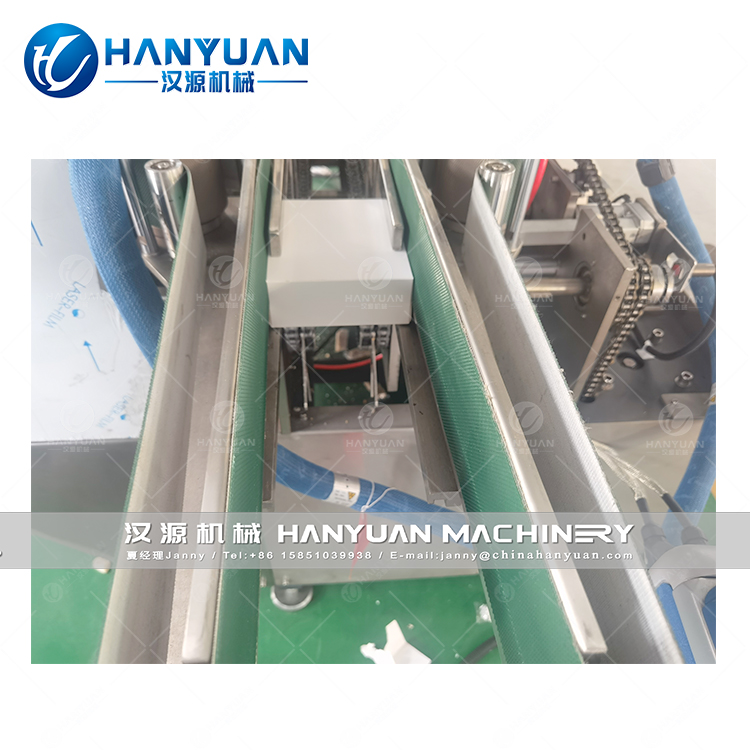

Production feeding conveyor,with anti-collision function.	Main driving have over-load production device,	Box storage rack,with box rack lack of material detection function.	Box storage rack,with box rack lack of material detection function.

1-Automatic Box Packing Machine rotaries carton feeder available.

2-Automatic Box Packing Machine with compact machine design and robust stainless steel construction.

3-Automatic Box Packing Machine is easy to operate.

4-Automatic Box Packing Machine with large range of formats, fast changeover.

5-Reliable production ,even with a variety of carton qualities.

6-Flexibility in the layout design for a custom-tailored supply.

Model		LX-HC 80
Max.output		80 box/min
Box	Max.box size	320x90x50 mm (LxWxH)
	Min.box size	150x50x30 mm (LxWxH)
	Quality requirement	250-400 g/㎡  Pre-folded with deep indentations
Types of closure		Hot-melt or Tuck-in
Max power		6.5 kW
Power supply		380V 50HZ
Compressed air	Working pressure	0.6-0.8 Mpa
	Consumption	150-200 L/min
Safety cover		Organic glass
Machine dimension		5000x2020x1800mm
Weight (Approx.)		2000KG
