Automatic Cartoning Sealing Machine

Availability:
Quantity:
Automatic Cartoning Sealing Machine
Automatic Cartoning Sealing Machine
Automatic Cartoning Sealing Machine
Automatic Cartoning Sealing Machine

设备介绍-中英

Automatic Cartoning Sealing Machine is mainly used to seal cartons, which can operate alone and can also be equipped into production line. Automatic Cartoning Sealing Machine is suitable for circumstance where the size of cartons does not change frequently, which especially fits for continuous sealing of cartons in the same size. The Automatic Cartoning Sealing Machine is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries.

设备图片-中英

Automatic Cartoning Sealing Machine

设备详情

Automatic Cartoning Sealing Machine Automatic Cartoning Sealing Machine Automatic Cartoning Sealing Machine Automatic Cartoning Sealing Machine

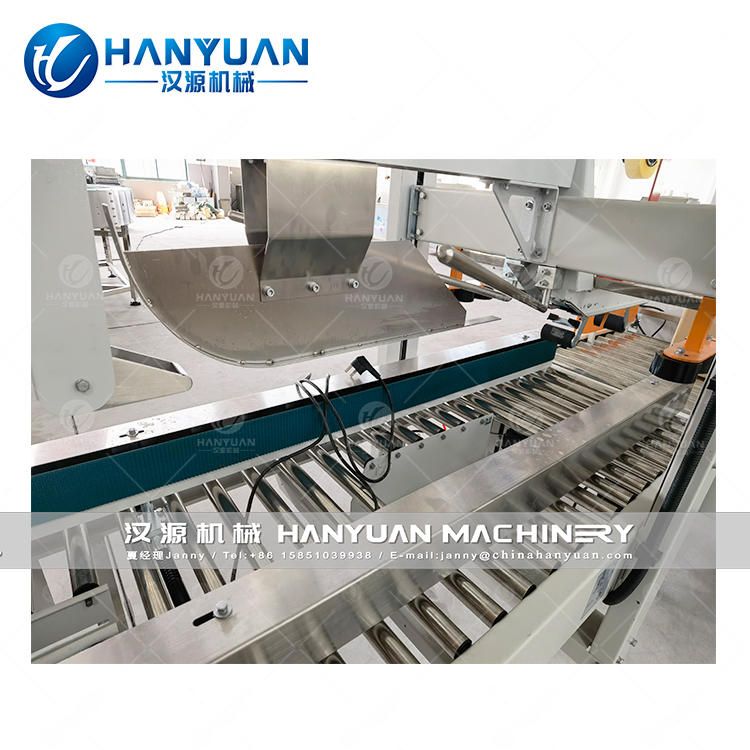

The upper automatic folding mechanism

 Automatically fold the top cover of the carton for easy operation,peace of mind and effort.

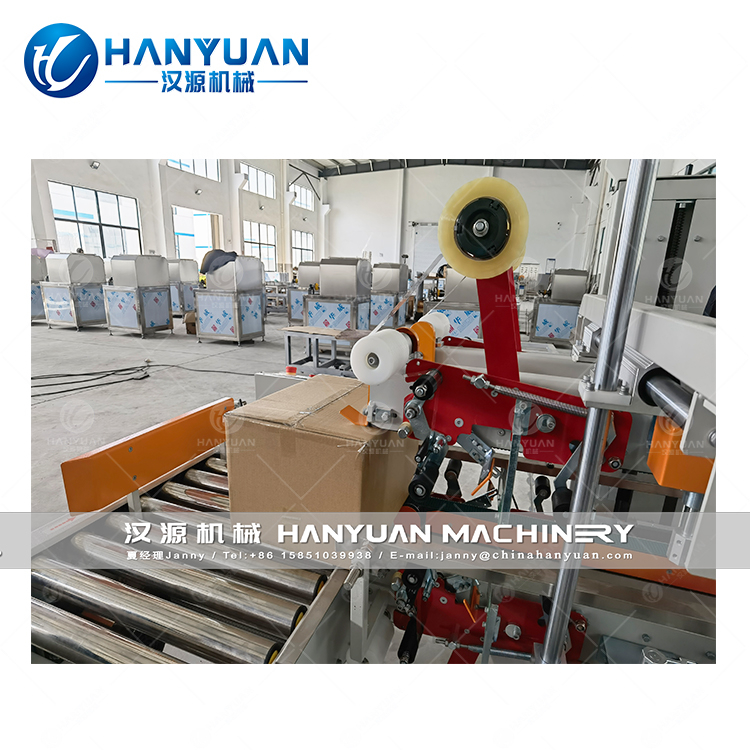

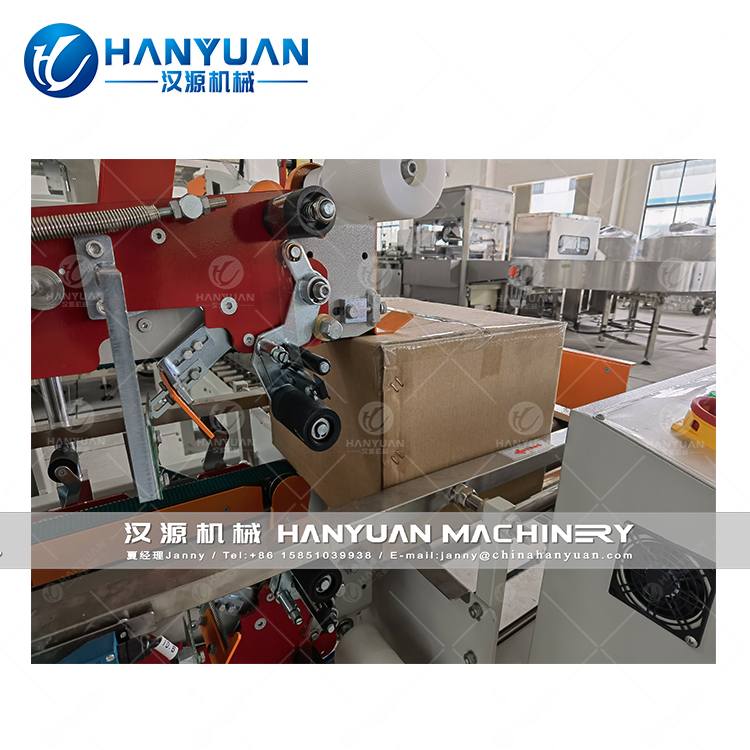

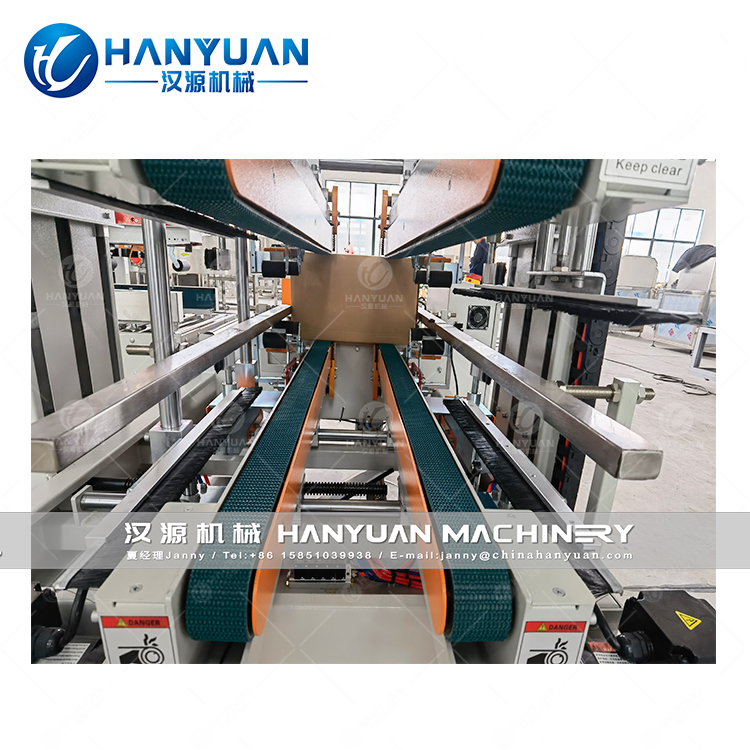

Movement and belt set

The movement and the belt cooperate to complete the sealing,the sealing effect is beautiful,no wrinkles.

Man-machine interface control panel control precision,easy operation

Machine material.

Our machine material is more thick than traditional machines,more strong and durable.

设备特点-中英

1. Manually adjust the width and height according to the carton specifications;

2. The belt drive on both sides of this Automatic Cartoning Sealing Machine is suitable for the sealing of larger and heavier products, economical, fast and stable;

3.Automatic Cartoning Sealing Machine equipped with blade guards to avoid accidental stab wounds.

4.Automatic Cartoning Sealing Machine can be a single machine operation, can also be used with the automated packaging line.样品-中英

Automatic Cartoning Sealing Machine

技术参数-中英

Mode

YPK-4012

FXJ-AT5050

FXJ-P5050

MH-102B

Power

200W 50/60Hz

240W 50HZ

240W

600W

Voltage

220v/380V

220V 1ph can be customized

220/380V

220/380V

Machine dimension

L2100*W2100*H1480mm

L1020*W850*H1450mm

L2000*W1200*H1500mm

L1900*W630*H1760mm

Packing Size

L450*W400*H400

L250*W150*H100

Mini Size:L& W120*120 Max Size:L&*500*500

L450*W400*H400

L250*W150*H100

W800*H600mm

Net weight

450kg

120KG

730kg

150kg

Capacity

9-12carton/min

15-20carton/min

15-20cartons/min

2.5S/strp

Tape width

48-75mm

48~75mm

48-75mm

PP tape

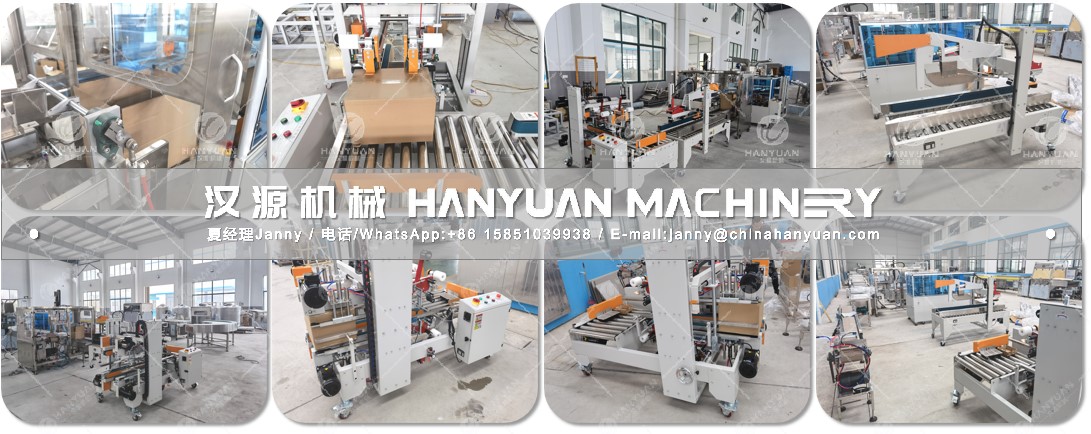

工厂实景-中英
