HY-CL560 Cutting Machine with AC-cooling Function is a multi-functional food forming machine , which is mainly used in the production of long square food, such as Cereal bar, Energy Bar, Protein Bar, Nougat Cake, Nougat Caramel Treats, Nougat, especially for sticky food.
| Quantity: | |
|---|---|
HY-CL560
hanyuan

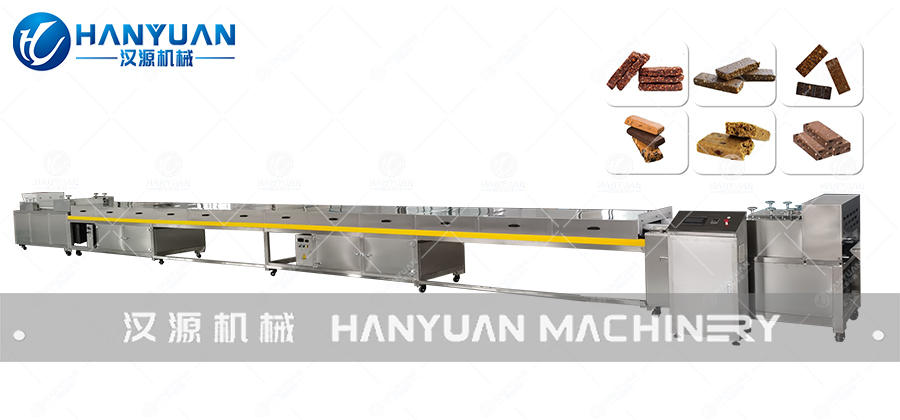

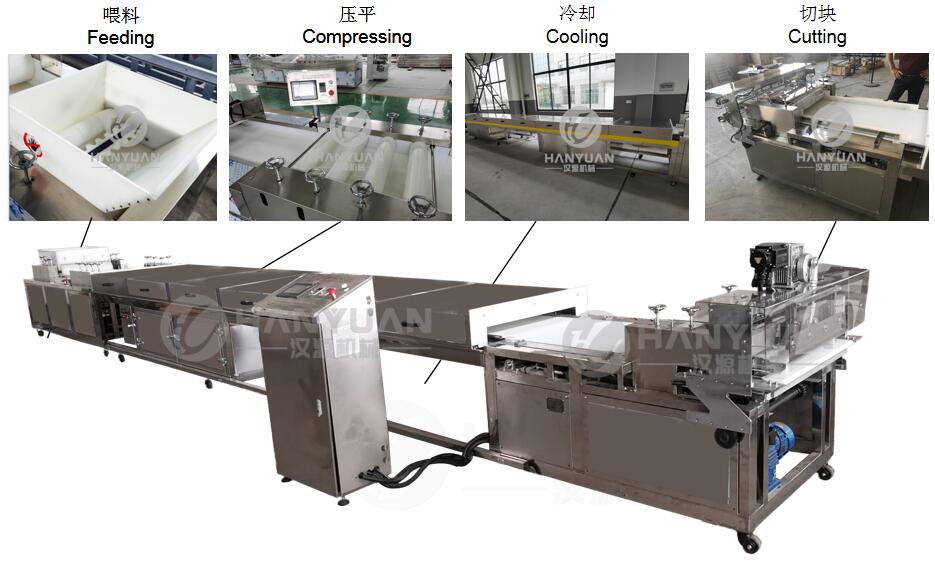

HY-CL560 Cutting Machine with AC-cooling Function is a multi-functional food forming machine , which is mainly used in the production of long square food, such as Cereal bar, Energy Bar, Protein Bar, Nougat Cake, Nougat Caramel Treats, Nougat, especially for sticky food. This machine is consisted of five parts: the feeding hopper, the multi-roller compressing part, the AC-cooling tunnel system, the cutting part, the cooling conveyor.
HY-CL560 Cutting Machine has multi-roller compressing structure to make uniform thickness. Feeding, paving, compressing, cooling, cutting, a sequence of production action. The cutting size can be adjusted to meet the needs of different specifications. Designed for sticky products, this machine has the active AC-cooling function. Variable frequency speed to achieve, automatic cutting, time-saving, economical.
| Model | HY-CL560 |
| Capacity | 3~4t/8 |
| Voltage | 380V/50Hz |
| Power | 12Kw |
| Size | 19000×1200×1200mm |
1、The working speed can be controlled by PLC through frequency conversion.
2、The thickness of the products can be controlled by the feeding device and the multi-roller compressing unit through changing the rollers’height.
3、The cooling capacity can be controlled by the temperature controller of the air-condition.
4、The width of the candy can be controlled by the transverse knives unit
5、The length of the candy can be controlled by the frequency of the rolling knife.
