HY- Full Automatic Carton Packing Machine

HY- Full Automatic Carton Packing Machine is carton box forming machine, speed up to 8-12 boxes/min. PLC with interface control,non stop in whole process,which is-suction box,forming,folding bottom and sealing, easy operation and maintenance,stable.Suitable in Food, Medicine, Beverage, Daily necessities, Hardware, Electronic and other industries.

Availability:
Quantity:
HY- Full Automatic Carton Packing Machine
HY- Full Automatic Carton Packing Machine
HY- Full Automatic Carton Packing Machine
HY- Full Automatic Carton Packing Machine
HY- Full Automatic Carton Packing Machine
  • HY-P400

  • hanyuan

设备应用-中英

     HY- Full Automatic Carton Packing Machine is carton box forming machine, speed up to 8-12 boxes/min. PLC with interface control,non stop in whole process,which is-suction box,forming,folding bottom and sealing, easy operation and maintenance,stable.Suitable in Food, Medicine, Beverage, Daily necessities, Hardware, Electronic and other industries.

设备图片-中英

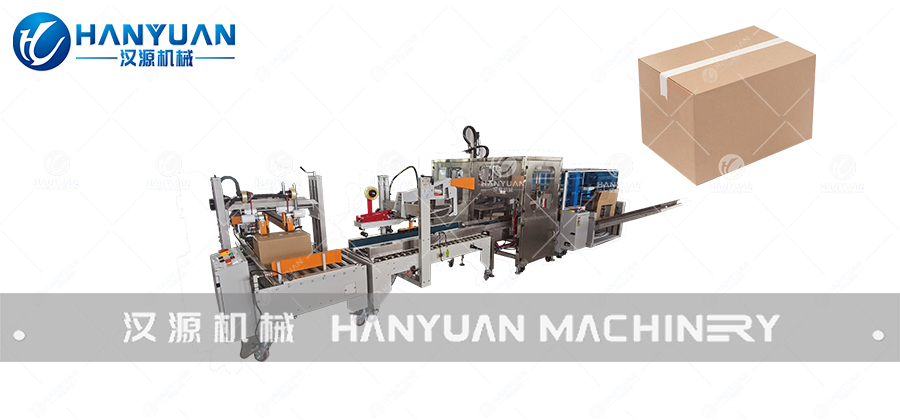

carton packing machine

技术参数-中英

Item

Value

Voltage

Customization

Power

2kW(≈)

Packing Speed

8-10case//min

Carton Size

L280-550  W180-400  H150-420 620>W/2+H>285

Max Film Width

400mm

Size

7500×3300×4000mm

设备特点-中英

Siemens PLC interface control

Vertical storage box, add box at any time, non stop in whole process

Replace the carton size and adjust the machine in 1-2 minutes. easy operation and maintenance,stable

Glass safety cover, automatically stop when the door is open

Suitable for single machine operation or connecting production line. Standard machines are available in stock.Accept non-standard size customize.

工厂实景-中英

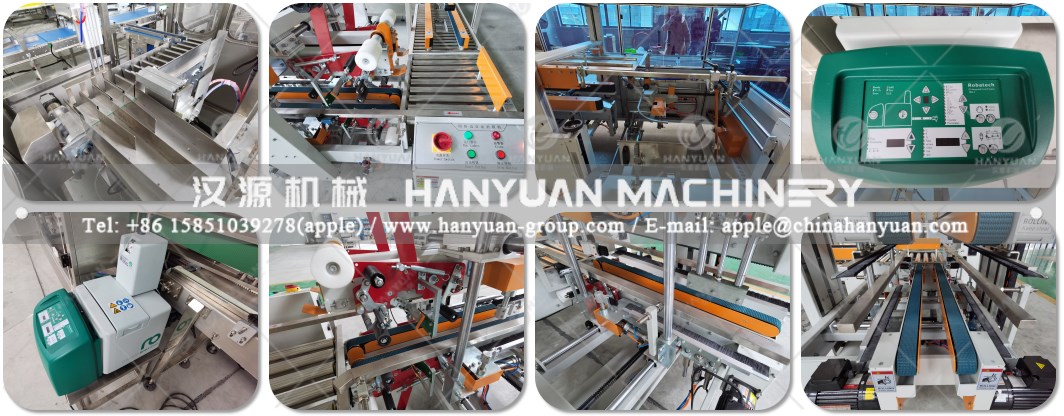

automatic carton machine2
