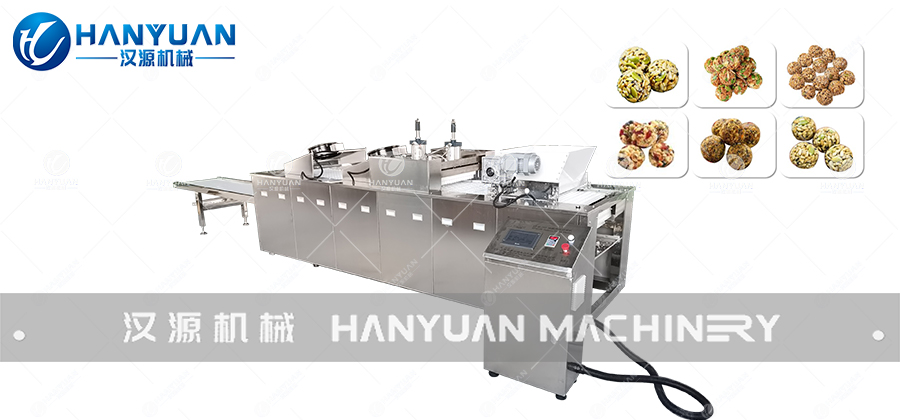

HANYUAN ML260 Automatic Nuts Ball Molding Machine is mainly used to mold Nuts Ball, Rice Candy, Peanut Candy, Sesame Candy, etc. ML260 Automatic Nuts Ball Molding Machine is consisted of five parts, such as feeding part, molding and compressing part, cooling part, demoulding part and cooling conveyor.HANYUAN ML260 Automatic Nuts Ball Molding Machine has the advantages: easy to operation, large production, various molding shape.
| Quantity: | |
|---|---|
HY-ML260
hanyuan
HANYUAN ML260 Energy Ball Making Machine is mainly used in the production of Special shape snack food, such as round shape rice cake, Cylindrical shape rice bar, ball shape energy ball etc. It helps improve production efficiency, reduce labor costs, and ensure the quality and appearance of the final products.

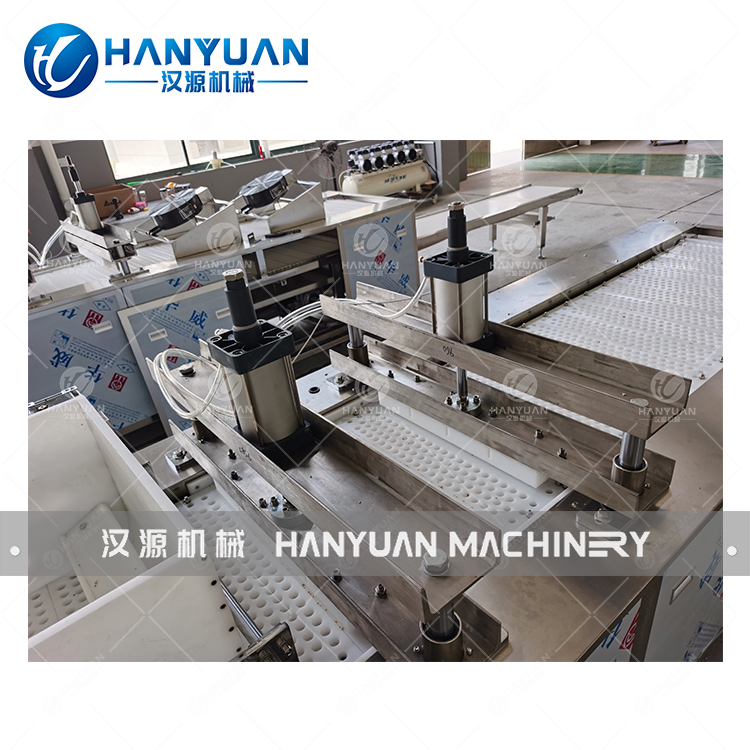

HANYUAN ML260 Energy Ball Making Machine is consisted of five parts: the feeding hopper, upper pressing molds, the fan-cooling system, the demolding part, the cooling conveyor.
| Model | HY-ML260 |
| Capacity | 3~4t/8 |
| Voltage | 380V/50Hz |
| Power | 2.5Kw |
| Size | 6500×1000×1200mm |
1.Using the hopper and feeding device to orderly spread the raw material into the hole of the forming molds.
2. Using the two upper pressing molds to press the material into the required thickness.

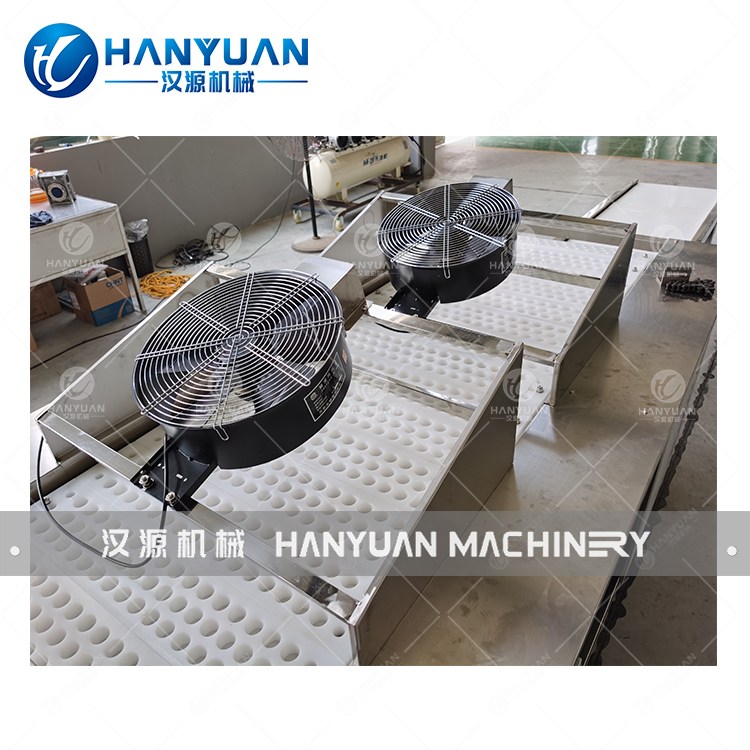

3.Using the cooling fans to cool down the semi-finished candy bar.

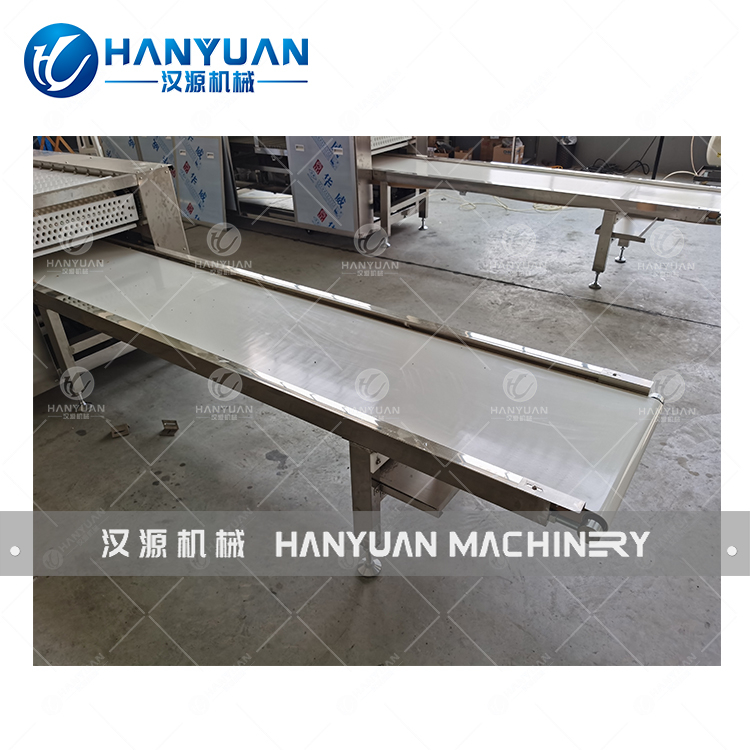

4.Using the demolding unit to push-out the bar out the hole, and transfer out by the conveyor.
5.The working speed can be controlled by PLC through frequency conversion.
6.The thickness of the products can be adjust by the upper pressing unit.
